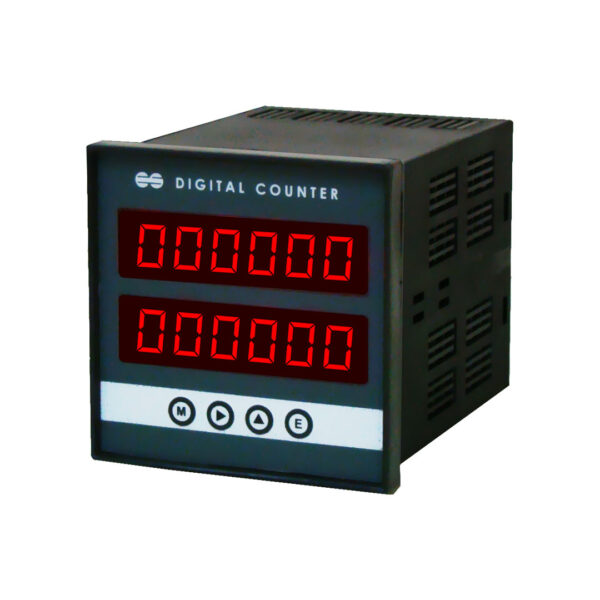

Dual Display Counter : Production + Hour Meter – EV HM 262

Model : EV HM 262 – 6+6 Digits

Electronic Switches offers digital counters with 6 Event counter and 6 digit for Hour Meter. Unit operates on power supply 230V AC / 110V AC as per user requirement.

Features

For Production Counter Input from NPN or PNP sensor
For Hour Meter, input through potential free contact
Counts time as long as machine is ON
Available in ABS Plastic Housing

Product Variants

MODELS	OUTPUT	RANGE
EV HM 262	Production Counter + Hour Meter	6 + 6 Digits

Specification

Power Supply	230V AC
Display Size	1/2 inch seven segment display
No. of digit	Upper display – Event counter – 6 digit Lower display – Hour Meter – 6 digit
Input	Through sensor
sensor supply	12V DC available from unit
Memory Backup	Provided through E-PROM
Reset	From front panel switch / through terminal strip for Event counter
Memory Backup	Provided through E-PROM
Housing	ABS Plastic housing
Dimensions	96 x 96 x 110mm

Applications

For Production / Event / Stroke Counting
To Count Machine ON-Time : Hour Meter
Separate Inputs for Production Counting and Time Counting
For industries such as Automobile, Pharma, Food, Engg etc;
For Paper, Film, Cloth, Textiles etc industries
For Injection Molding Machines
