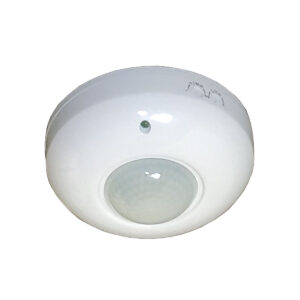

ESPL offers Human Motion Sensor based on Passive Infra-Red technique. This unit senses presence of moving person in the specified area and operates a Relay output. This sensor has a variety of applications in the field of Safety, Security, Lighting, HVAC and can be installed in commercial spaces to boost energy efficiency.
MODELS | OUTPUT | RANGE |
---|---|---|
IRB 031 / 032 | NPN – NO or NC selectable | 03 Meters |
IRB 033 / 034 | PNP – NO or NC selectable | 03 Meters |
IRB 101 / 102 | NPN – NO or NC selectable | 10 Meters |
IRB 103 / 104 | PNP – NO or NC selectable | 10 Meters |
IRB 201 / 202 | NPN – NO or NC selectable | 20 Meters |
IRB 203 / 204 | PNP – NO or NC selectable | 20 Meters |
IRB 301 / 302 | NPN – NO or NC selectable | 30 Meters |
IRB 303 / 304 | PNP – NO or NC selectable | 30 Meters |
Power Supply | 220 Volts AC through Terminal Strip |
Output | 220 Volts AC through Terminal Strip |
Contact Rating | 2A @ 220 V AC |
Maximum Load | Up to 300 Watt |
Detection Range | Adjustable up to 4meters. |
Time Delay Adj. | Adjustable up to 7 min. |
Power Frequency | 50Hz |
Sensitivity Adj | Provided by potentiometer |
Detection Angle | 360 degrees |
Housing | ABS Plastic Housing |
