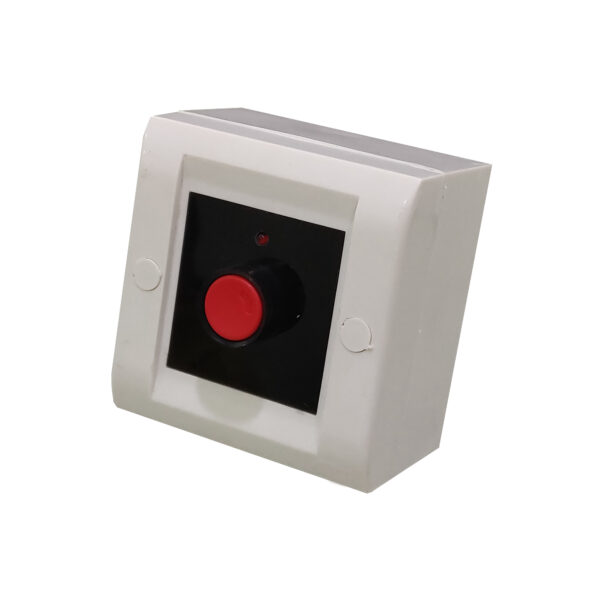

Switch ON Timer works on 220 volts AC and has three wires. When switch is pressed, 220 volts AC output is available to switch ON the lights. Lights will be switched OFF automatically after preset time is over. This preset time can be adjusted by user as per requirement.
It is used for controlling working of lamps in remote areas, store rooms, pump room, industrial processes, backyard sheds etc;
| MODELS | OUTPUT | RANGE |
|---|---|---|
| IRB 031 / 032 | NPN – NO or NC selectable | 03 Meters |
| IRB 033 / 034 | PNP – NO or NC selectable | 03 Meters |
| IRB 101 / 102 | NPN – NO or NC selectable | 10 Meters |
| IRB 103 / 104 | PNP – NO or NC selectable | 10 Meters |
| IRB 201 / 202 | NPN – NO or NC selectable | 20 Meters |
| IRB 203 / 204 | PNP – NO or NC selectable | 20 Meters |
| IRB 301 / 302 | NPN – NO or NC selectable | 30 Meters |
| IRB 303 / 304 | PNP – NO or NC selectable | 30 Meters |
| Power Supply | 230V AC, 3 wire unit |
| Output | ON after pressing switch and OFF after preset time is over |
| Time Period | Settable upto 20 min. |
| Suitable for | Tube Light / Bulb / CFL / LED light |
| Max Load | upto 250 Watts |
| Indication | LED |
| Enclosure | ABS Plastic |
