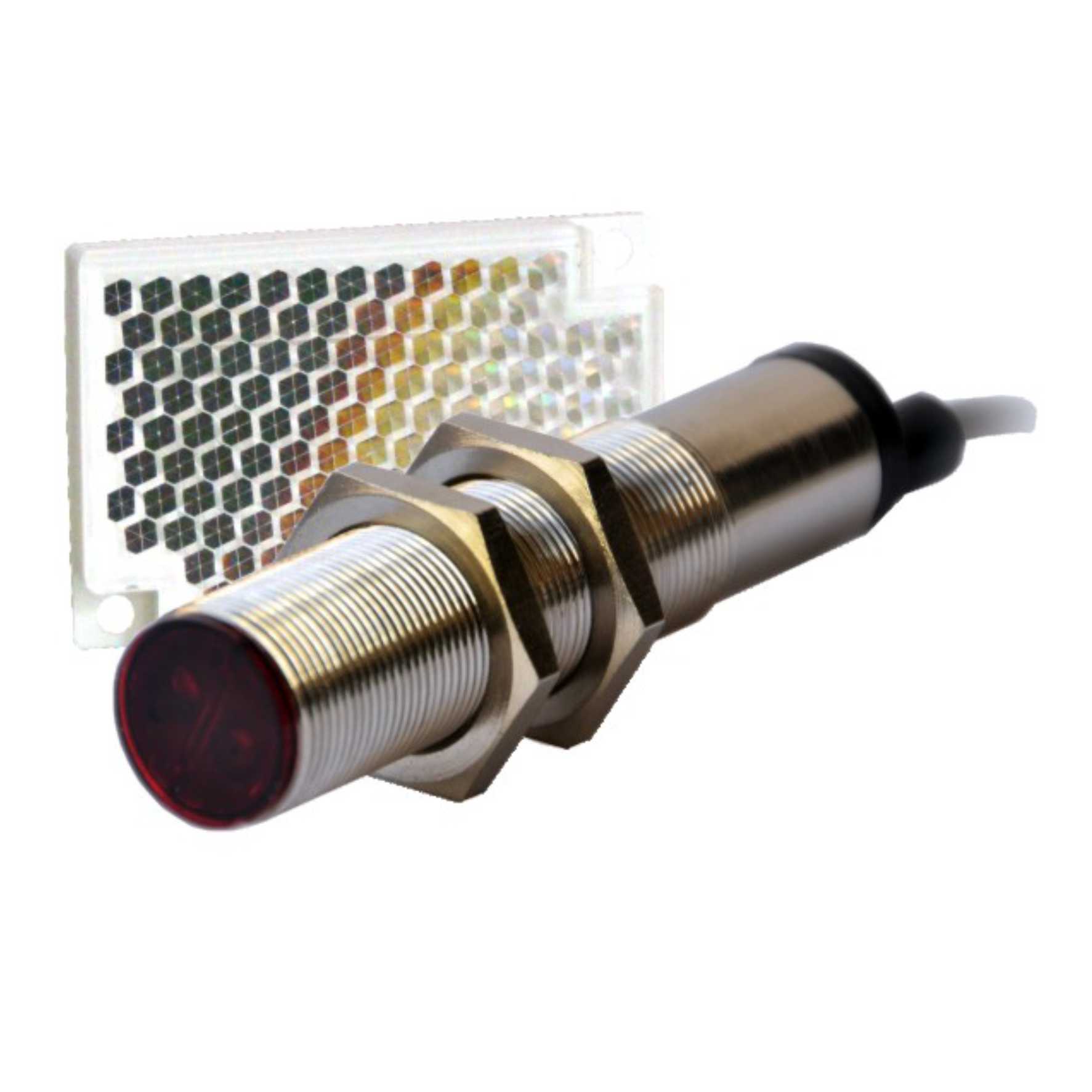

IR Retro Reflective Sensor – Dia 18 mm

Model :
IRR 181 / 381  :  NPN  – NO or NC

IRR 183 /383 : PNP – NO or NC

Electronic Switches offers Infra Red Retroreflective scan sensor in 18 mm Dia with 3wires in Brass Housing for 300  / 3 mtr range with reflector. Unit operates on power supply 10 to 30 volts DC.

Features

  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing

Product Variants

MODELS OUTPUT RANGE
IRB 031 / 032 NPN – NO or NC selectable 03 Meters
IRB 033 / 034 PNP – NO or NC selectable 03 Meters
IRB 101 / 102 NPN – NO or NC selectable 10 Meters
IRB 103 / 104 PNP – NO or NC selectable 10 Meters
IRB 201 / 202 NPN – NO or NC selectable 20 Meters
IRB 203 / 204 PNP – NO or NC selectable 20 Meters
IRB 301 / 302 NPN – NO or NC selectable 30 Meters
IRB 303 / 304 PNP – NO or NC selectable 30 Meters

Specification

Power Supply 10 – 30V DC
Output PNP or NPN  and NO or NC selectable
Sensing Range 300mm / 3 mtr  (Range specified with white photographic paper )
No of wires 3 wire
Output Current 200mA
Protection Short Circuit / Reverse Polarity
Sensitivity Adj. Available
Housing Plated Brass
Dimensions 18 D x 75 L mm

Applications

  • For Height based GO-NO-GO systems
  • Object detection on Conveyer Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
