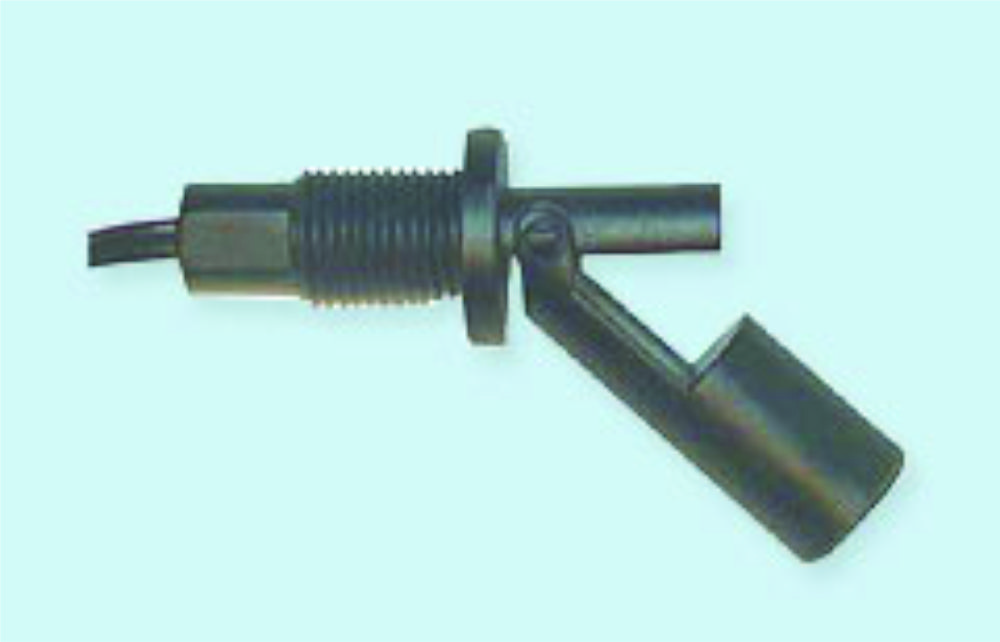

Magnetic Float Level switch – Horizontal Type

Model : FS 01

Electronic Switches ( I ) P. Ltd; offers range of Magnetic Float Level sensor.Following are the details Plastic Horizontal Float Switch

  • Option to have body in Nylon.
  • Standard wire Lead 1.5 Mtr. Long
  • Contact Rating (10 W, 24 V, 1 A)
  • Suitable for Water / oil / liquids etc.

Features

  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing

Product Variants

MODELS OUTPUT RANGE
IRB 031 / 032 NPN – NO or NC selectable 03 Meters
IRB 033 / 034 PNP – NO or NC selectable 03 Meters
IRB 101 / 102 NPN – NO or NC selectable 10 Meters
IRB 103 / 104 PNP – NO or NC selectable 10 Meters
IRB 201 / 202 NPN – NO or NC selectable 20 Meters
IRB 203 / 204 PNP – NO or NC selectable 20 Meters
IRB 301 / 302 NPN – NO or NC selectable 30 Meters
IRB 303 / 304 PNP – NO or NC selectable 30 Meters

Specification

Power Supply 12V DC
Contact Type SPST – NO
Switching Capacity 10W/VA MAX.
Switching Voltage 200 VDC MAX.
Switching Current 0.5A Max.
Carry Current 1A Max
Float Nylon
Float material  30% GF NYLON
LEAD wire 2 core, 1 mtr

Applications

  • For Height based GO-NO-GO systems
  • Object detection on Conveyer Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
