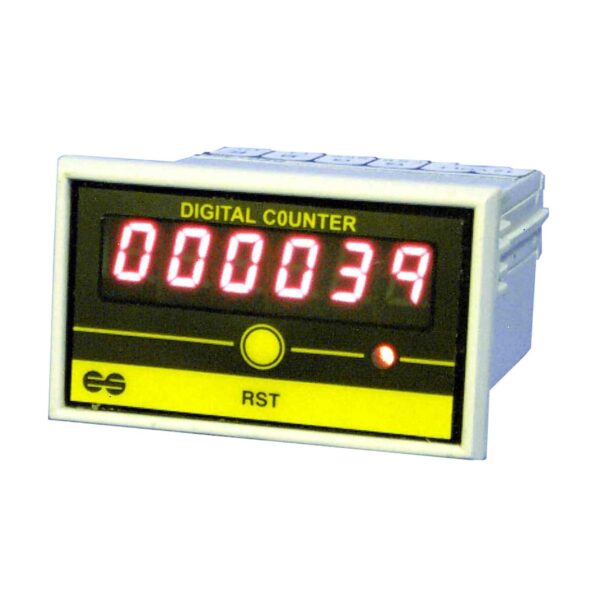

Miniature Production Counter

Miniature Production Counter – 38x63mm

Model :  ME 62 D  –  DC Supply
Model :  ME 62 A  –  AC Supply

Electronic Switches offers digital counters with 6 digit, 13mm display size. Unit operates on power supply 230V AC for ME 62 A and 12/24V AC/DC for ME 62 D

Features

  • Input from NPN, PNP , Limit / Micro Switches
  • Small Size of product helps in small available space
  • No of digits :  6
  • Memory Backup available
  • Overall size of product is very small
  • Available in ABS Plastic Housing

Product Variants

MODELS SUPPLY RANGE
ME 62 D  –   (DC Supply) 12 / 24 Volts DC or AC 6  Digits
ME 62 A  –   (AC Supply) 230 Volts AC 6 Digits

Specification

Power Supply ME 62 A – 230V AC ,   ME 62D – 12/24 V AC/DC
Display Size 13mm seven segment display
No. of digit 6
Input Through sensor
sensor supply 12V DC available from unit
Reset From front panel switch / through terminal strip
Mempry Backup Provided through E-PROM
Housing ABS Plastic
Dimensions 63 x 38 x 82mm
Cut out size 53.5 x 30mm

Applications

  • For all types of Production Houses
  • For Industries such as Automobiles, Engineering etc;
  • For Industries such as Pharma, Chemicals, Ceramics etc;
  • For Industries such as Printing, Food Processing etc;
  • For Manufacturing Fast Moving Consumer Goods
  • For all types of Production Counting
