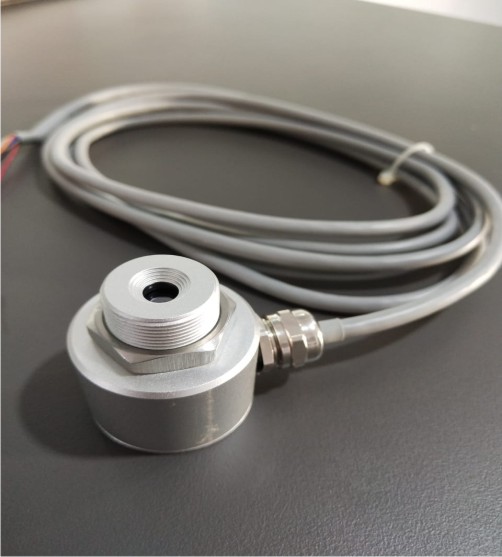

Non Contact Temperature Sensor

Electronic switches offers Non Contact Temperature sensor Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects (i.e. Rollers, moving machinery or a conveyor belt), or where non contact measurements are required because of contamination or hazardous reasons (such as high voltage) where distances are too great for thermocouples or other contact sensors. Sensor has quick response time 150ms. Housing is Rugged IP 65 (NEMA-4) Aluminium housing.

Compact and round shaped enabling installation in limited space.


  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing

Product Variants

IRB 031 / 032 NPN – NO or NC selectable 03 Meters
IRB 033 / 034 PNP – NO or NC selectable 03 Meters
IRB 101 / 102 NPN – NO or NC selectable 10 Meters
IRB 103 / 104 PNP – NO or NC selectable 10 Meters
IRB 201 / 202 NPN – NO or NC selectable 20 Meters
IRB 203 / 204 PNP – NO or NC selectable 20 Meters
IRB 301 / 302 NPN – NO or NC selectable 30 Meters
IRB 303 / 304 PNP – NO or NC selectable 30 Meters


Power Supply 24 VDC ± 20%
Temperature Range  0°C ~ 500°C (32°F to 932°F)
Sensing Range 900mm
Spectral Response 8 ~ 14 ìm
Optics Resolution 15:01
Accuracy ±1% of reading or ±1.5°C, whichever is Greater
Repeatability  ±0.5% of reading or ±0.5°C,whichever is Greater
Response Time(95% signal) 150 ms
Analog Output 4 ~ 20mA
Minimum Load Impedance(V)  10 KÙ
Maximum Loop Resistance (A) 500 Ù
Ambient Temperature  0°C to 70°C
Storage Temperature  -20°C to 85°C
Relative Humidity  10 to 95%, non-condensing
Cable Temperature  -20°C to 80°C
Current Draw max. 100 mA
Cable Length 2 mtr


  • For Height based GO-NO-GO systems
  • Object detection on Conveyer Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
