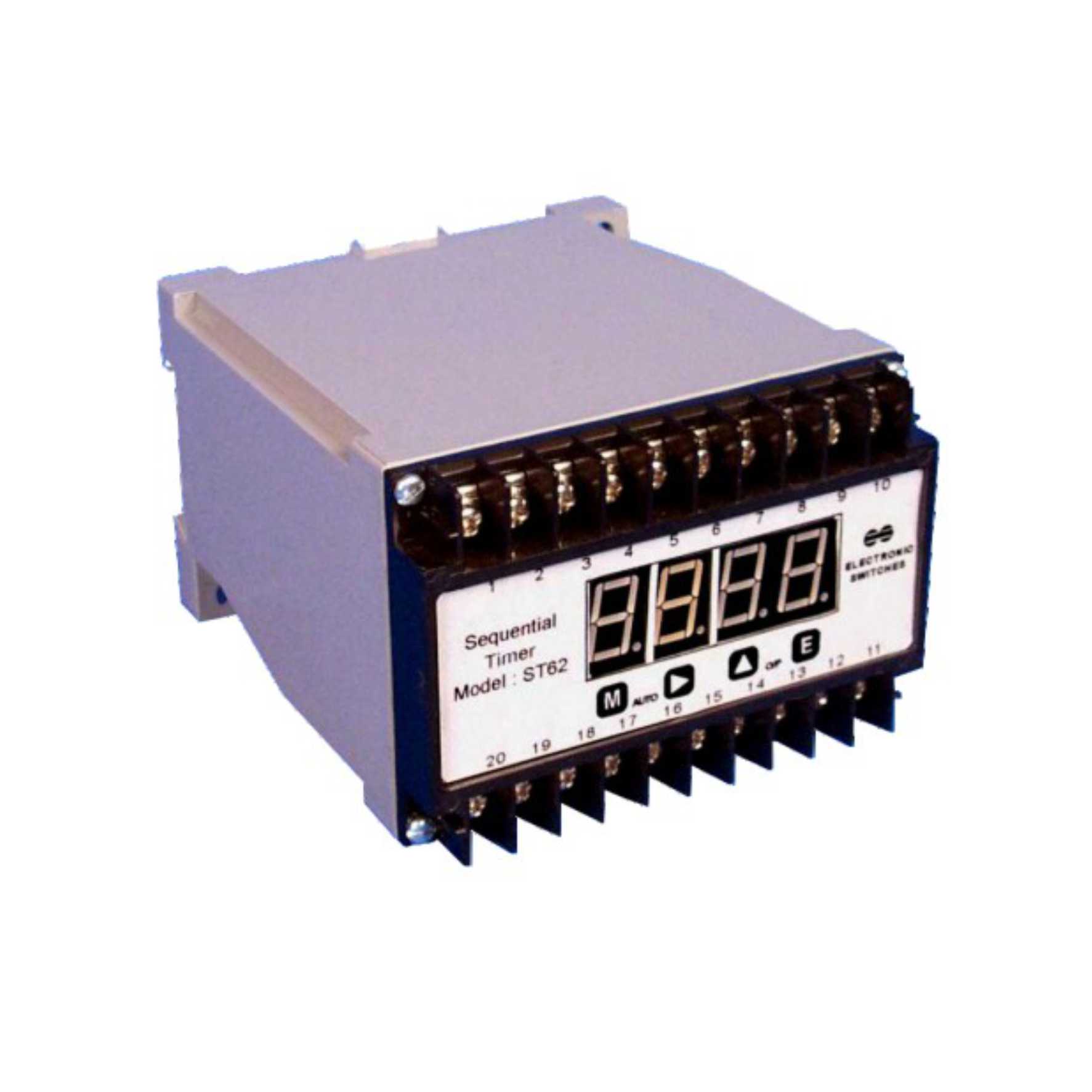

Electronic Switches offers Sequential Timer with 4 digit. Units operates on 220 Volts AC. supply with 6 relay output which is independently adjustable. ON / OFF Time independently adjustable.
| MODELS | OUTPUT | RANGE |
|---|---|---|
| IRB 031 / 032 | NPN – NO or NC selectable | 03 Meters |
| IRB 033 / 034 | PNP – NO or NC selectable | 03 Meters |
| IRB 101 / 102 | NPN – NO or NC selectable | 10 Meters |
| IRB 103 / 104 | PNP – NO or NC selectable | 10 Meters |
| IRB 201 / 202 | NPN – NO or NC selectable | 20 Meters |
| IRB 203 / 204 | PNP – NO or NC selectable | 20 Meters |
| IRB 301 / 302 | NPN – NO or NC selectable | 30 Meters |
| IRB 303 / 304 | PNP – NO or NC selectable | 30 Meters |
| Supply Voltage | 220 Volts AC |
| No of Digits | 4 Digits |
| Display Type | Seven Segments LED Display |
| Output | Upto 6 relays selectable, |
| Output current | Rated 5 Amp at 230V AC |
| Timings | T1 (ON delay) and T2 (OFF delay) Independently adjustable for each relay |
| Timing settable | Upto 99 Sec. / Min. Selectable |
| Housing | DIN Rail Mounting, Plastic |
| Dimensions | 100 x 70 x 110 mm |
