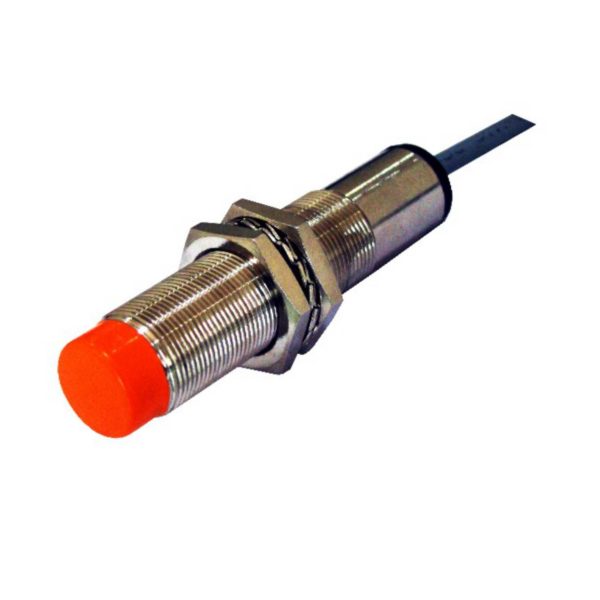

Electronic Switches offers Analog Sensors are selfcontained, general purpose, solid-state devices designed to sense the presence of ferrous and nonferrous metal objects without touching them. These special versions provide a 0…10V sourcing analog output proportional to the sensing distance.
It is used in Light-duty packaging applications Automotive, welding equipment, Food-processing plants,
| MODELS | O/P | STATE | RANGE mm | TYPE | HOUSING mm |
|---|---|---|---|---|---|
| IP 18105 DF | NPN | NO | 5 | FLUSH | D18 / L70 |
| IP 18205 DF | NPN | NC | 5 | FLUSH | D18 / L70 |
| IP 18305 DF | PNP | NO | 5 | FLUSH | D18 / L70 |
| IP 18405 DF | PNP | NC | 5 | FLUSH | D18 / L70 |
| IP 18108 DN | NPN | NO | 8 | NON-FLUSH | D18 / L70 |
| IP 18208 DN | NPN | NC | 8 | NON-FLUSH | D18 / L80 |
| IP 18308 DN | PNP | NO | 8 | NON-FLUSH | D18 / L70 |
| IP 18408 DN | PNP | NC | 8 | NON-FLUSH | D18 / L70 |
| Supply Voltage | 24V DC |
| Output | 0 – 10V DC ( PROPORTIONAL ) |
| Current | 200mA |
| Cable | 2 mtr |
| Indication | LED |
| Operating Temp. | Upto 55 degree C |
| Diameter and Range | Diameter 18, Range 2 – 7mm (Ferrous ) |
| Diameter 30, Range 2 – 10mm (Ferrous ) | |
| Housing | Plated Brass |
| Dimension | M 18 , M 30 x 65 L mm |
