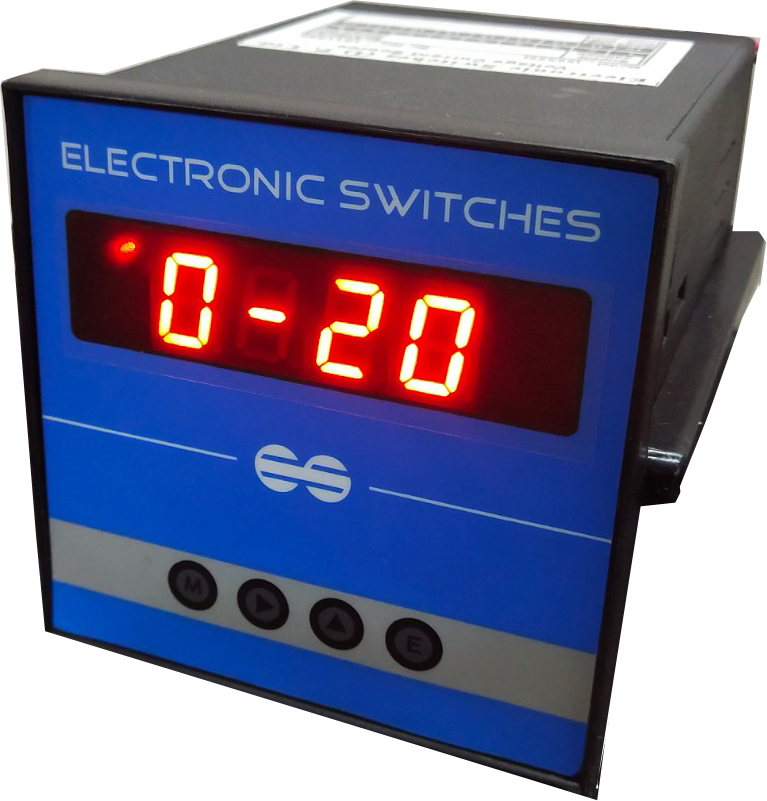

Current + Voltage source, required for Testing in PLC panels, Instrumentation, sensor testing.
Considering the various application, user settable current and voltage modes are offered. For ease of operation user settable resolution of current and volatge is offered. Facility for fast operation for zero and full scale setting.
| MODELS | OUTPUT | RANGE |
|---|---|---|
| IRB 031 / 032 | NPN – NO or NC selectable | 03 Meters |
| IRB 033 / 034 | PNP – NO or NC selectable | 03 Meters |
| IRB 101 / 102 | NPN – NO or NC selectable | 10 Meters |
| IRB 103 / 104 | PNP – NO or NC selectable | 10 Meters |
| IRB 201 / 202 | NPN – NO or NC selectable | 20 Meters |
| IRB 203 / 204 | PNP – NO or NC selectable | 20 Meters |
| IRB 301 / 302 | NPN – NO or NC selectable | 30 Meters |
| IRB 303 / 304 | PNP – NO or NC selectable | 30 Meters |
| Model | CV 42-1 | ||
| Facility | User selectable current and voltage source | ||
| Power | 230V AC | ||
| Resolution | User selectable for current and voltage | ||
| Dimensions | 96 x 96 x 110 mm | ||
| Housing | ABS Plastic | ||
| Facility for fast operation for Zero and Full scale | |||
| Current source – | |||
| Operating modes | Two ( 4-20 mA , 0 – 20 mA ) user selectable | ||
| Max allowable load | 750 Ohm | ||
| Resolution | 0.02 mA | ||
| Accuracy | 0.05% of full scale | ||
| Voltage source – | |||
| Output voltage | 0 to 10 vdc | ||
| Resolution | 0.02 V DC | ||
| Accuracy | 0.05 % of full scale | ||
