Heater Failure System

Electronic switches offers heater failure detection controller which detects failures for heater and generate outputs alarm signal. This allows user to take necessary action for replacement of heater well within time. Detection of heater failure is required for varioud applications. In normal case, user understand failure of heater when desired temperature is not reached.

It supports the safe design of heater control systems, and contributes to maintenance improvements for the user. Electronic Switches offers heater failure controller available in Single phase and Three phase type.


  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing

Product Variants

IRB 031 / 032 NPN – NO or NC selectable 03 Meters
IRB 033 / 034 PNP – NO or NC selectable 03 Meters
IRB 101 / 102 NPN – NO or NC selectable 10 Meters
IRB 103 / 104 PNP – NO or NC selectable 10 Meters
IRB 201 / 202 NPN – NO or NC selectable 20 Meters
IRB 203 / 204 PNP – NO or NC selectable 20 Meters
IRB 301 / 302 NPN – NO or NC selectable 30 Meters
IRB 303 / 304 PNP – NO or NC selectable 30 Meters


Power Supply 230V AC
Output Potential free relay contact
Teach Switch Current Setting

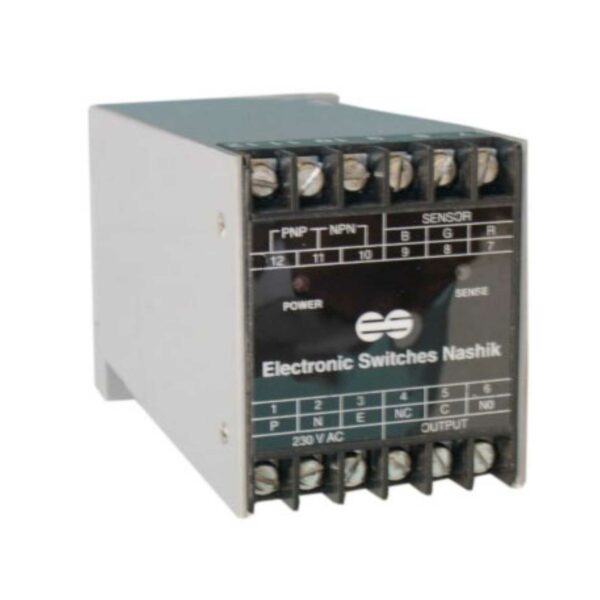

Housing ABS Plastic, DIN Rail Mounting
Dimensions 61 x 71 x 110mm
Set Consists :
1. CT( Current transducer) – 1 No For Single Phase
1. CT ( Current transducer) – 2 Nos for Three phase
2. Controller – 1 No.


  • For Height based GO-NO-GO systems
  • Object detection on Conveyer Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
