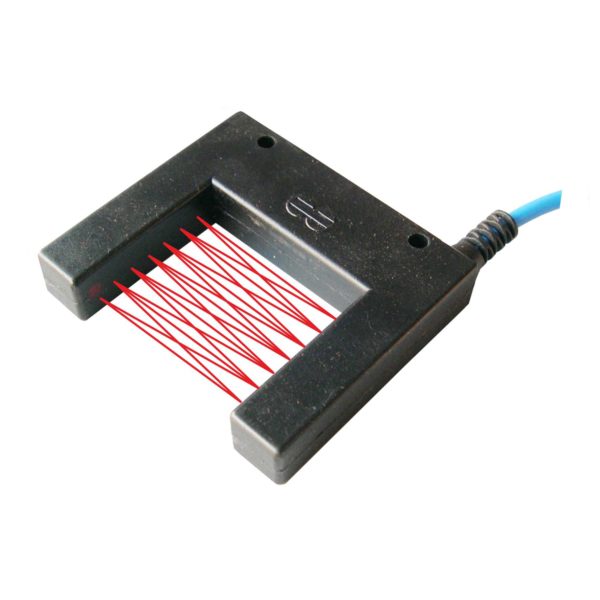

Electronic Switches offers Infra Red Slot sensor in 100mm width and 100mm depth with 3wires in ABS Plastic Housing with sensitivity adjustment. Unit operates on power supply 10 to 30 volts DC.
| MODELS | OUTPUT | AREA |
|---|---|---|
| WFS 1011 | NPN – NO | 100 X 100 mm |
| WFS 1013 | PNP – NO | 100 x 100 mm |
| Power Supply | 10 – 30V DC |
| Output | PNP or NPN – NO |
| Slot Width | 100mm |
| Slot Depth | 100mm |
| No of wires | 3 wire |
| Output Current | 200mA |
| Protection | Short Circuit / Reverse Polarity |
| Sensitivity Adj. | Available |
| Housing | ABS Plastic |
| Dimensions | 139 x 136 x 30mm |
