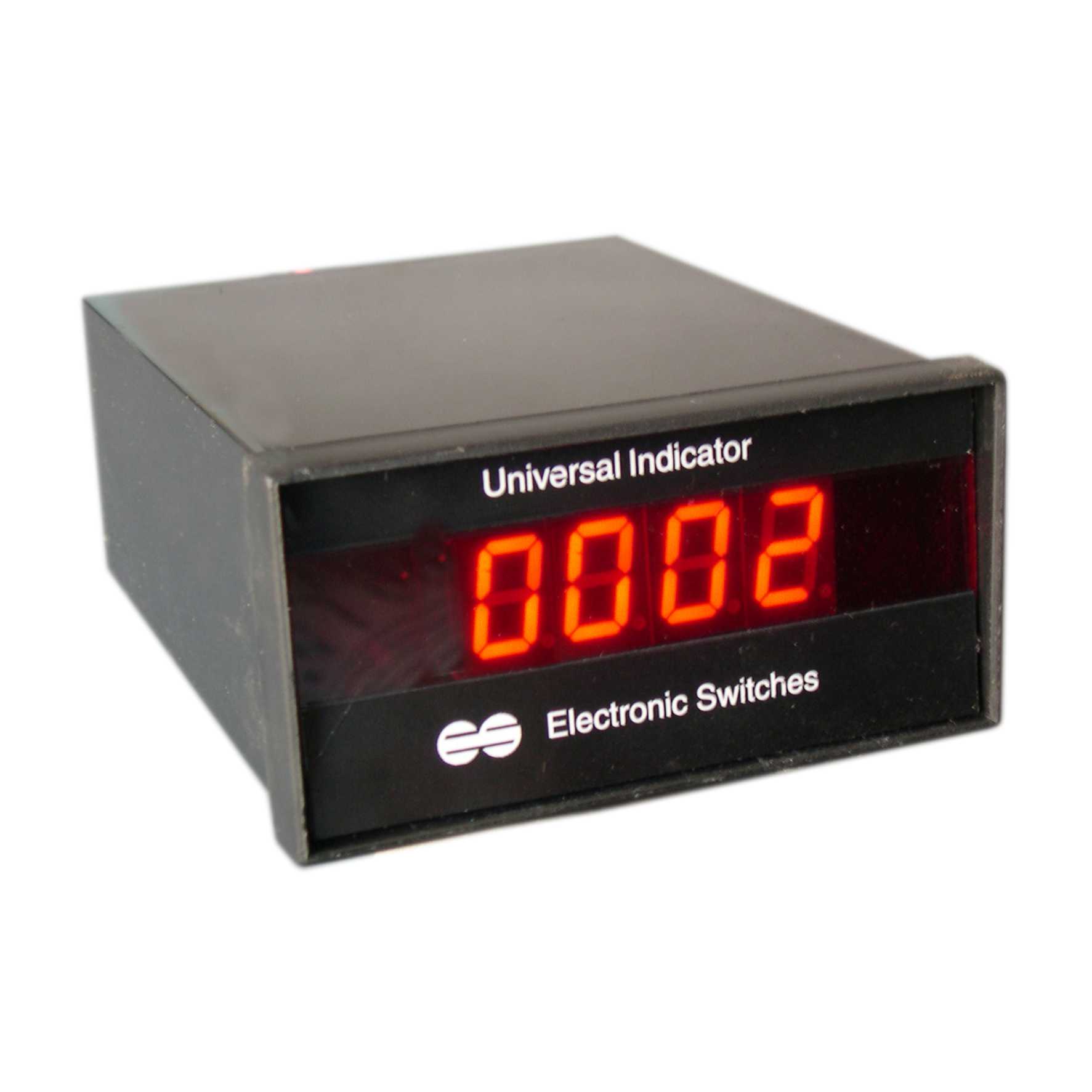

Electronic Switches (I) P. Ltd; offers 4 Digits, Micro-controller Universal Indicator with micro controller based technique with selectable 0 – 10V DC / 4 – 20mA and user settable in 1/2 inch display size
These are used in displaying various parameters such as, temperature, pressure, flow, viscosity, pH, displacement, speed, etc; proportional to the input signal
| MODELS | OUTPUT | RANGE |
|---|---|---|
| MI 14 |
4 Digits Display |
Display Only |
| MI 14 – 1R / 2R |
Display with Relay Output |
Potential Free Contacts |
| MI 14 – 1R / 2R / TR |
Display with Relay Output with Retransmission Output |
Relay Contacts + Retransmission |
| MI 14 – TR |
Display with Retransmission Output |
Display + (0-10 VDC or 4-20 mA) |
| Retransmission Output = 0-10 VDC or 4-20 mA |
||
| Relay Contacts : NC – C – NO : Potential free contacts |
||
| Supply Voltage | 220 Volts AC |
| No of Digits | 4 Digits |
| Display Type | Seven Segments LED Display |
| Input | 0 – 10V DC OR 4 – 20mA |
| Output | Single relay output – MI 14 – 1R |
| Two relay output – MI 14 – 2R | |
| Full Scale reading | Upto 9999 , User Settable |
| Housing | ABS plastic |
| Dimensions | 48 x 96 x 110mm |
