Production Counter / Event Counter / Stroke Counter / Pulse Counter
Six Digits Preset Production Counter

Production Counter / Digital Counter – 48×96 mm

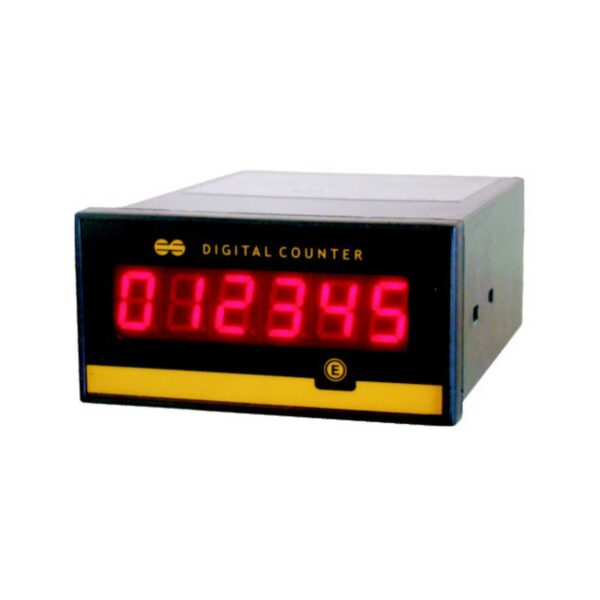

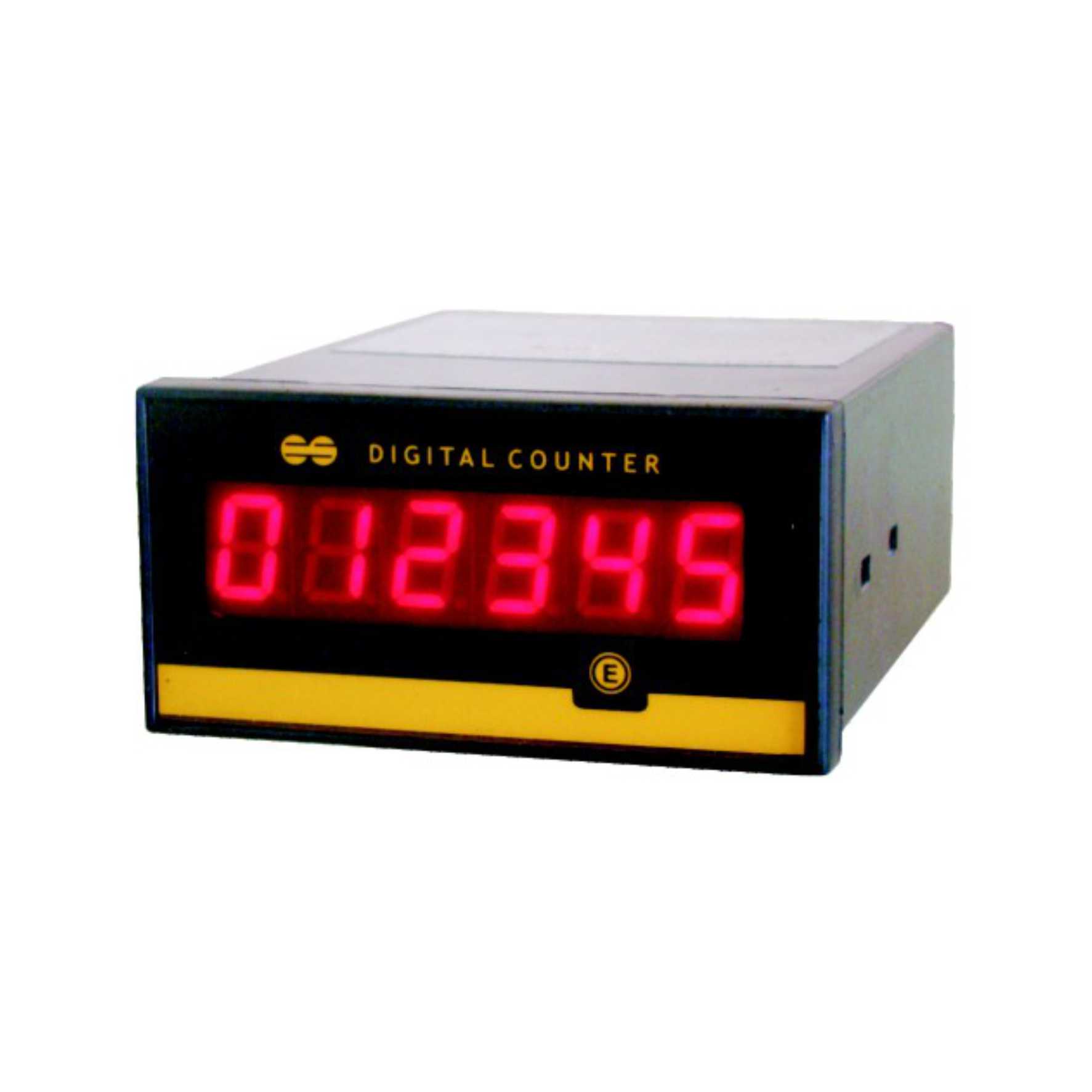

EV 62   :   6 Digits  –  48×96 mm

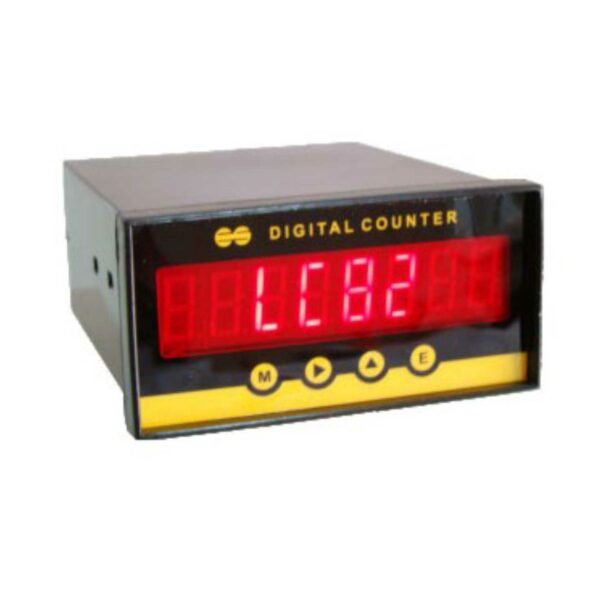

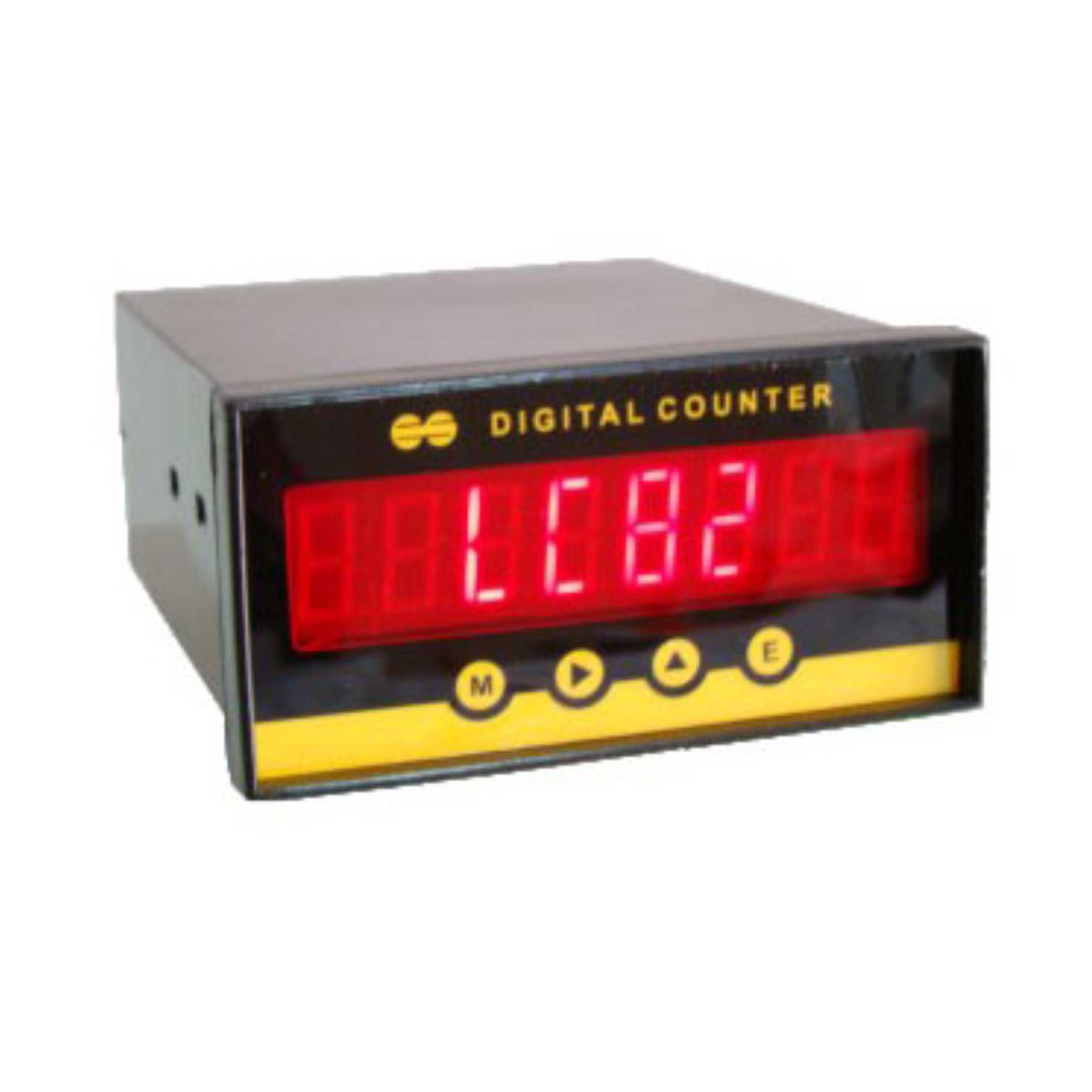

EV 82   :   8 Digits  –  48×96 mm

Electronic Switches offers digital counters with 6 and 8 digit. Unit operates on power supply 230V AC / 110V AC as per user requirement

Features

  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing

Product Variants

MODELS OUTPUT RANGE
IRB 031 / 032 NPN – NO or NC selectable 03 Meters
IRB 033 / 034 PNP – NO or NC selectable 03 Meters
IRB 101 / 102 NPN – NO or NC selectable 10 Meters
IRB 103 / 104 PNP – NO or NC selectable 10 Meters
IRB 201 / 202 NPN – NO or NC selectable 20 Meters
IRB 203 / 204 PNP – NO or NC selectable 20 Meters
IRB 301 / 302 NPN – NO or NC selectable 30 Meters
IRB 303 / 304 PNP – NO or NC selectable 30 Meters

Specification

Power Supply 230V AC
Display Size 1/2 inch seven segment display
No. of digit EV 62 – 6 digit / EV 82 – 8 digit
Input Through sensor
sensor supply 12V DC available from unit
Reset From front panel switch / through terminal strip
Mempry Backup Provided through EEPROM
Housing ABS Plastic
Dimensions 48 x 96 x 110mm
Cut out size 92 x 46.5mm

Applications

  • For Height based GO-NO-GO systems
  • Object detection on Conveyer Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
