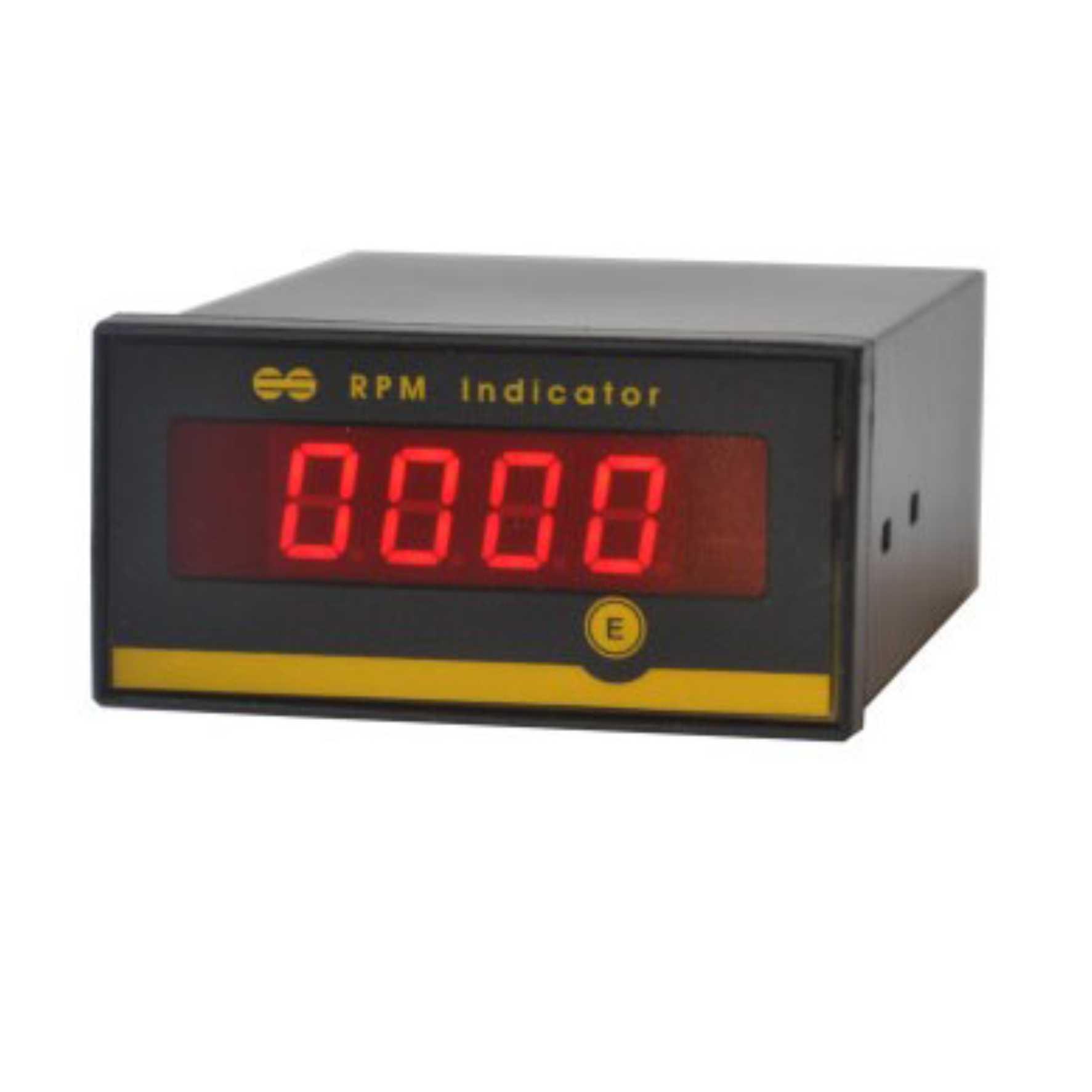

Electronic Switches (I) P. Ltd; offers 4 Digits, RPM Indicator with Retransmission analog and digital output ( TTL ). The unit provides analog voltage ( 0 – 10V DC or 0 – 5V DC OR 4 – 20mA ) proportional to the RPM displayed. Full scale value is user settable.
| MODELS | OUTPUT | RANGE |
|---|---|---|
| IRB 031 / 032 | NPN – NO or NC selectable | 03 Meters |
| IRB 033 / 034 | PNP – NO or NC selectable | 03 Meters |
| IRB 101 / 102 | NPN – NO or NC selectable | 10 Meters |
| IRB 103 / 104 | PNP – NO or NC selectable | 10 Meters |
| IRB 201 / 202 | NPN – NO or NC selectable | 20 Meters |
| IRB 203 / 204 | PNP – NO or NC selectable | 20 Meters |
| IRB 301 / 302 | NPN – NO or NC selectable | 30 Meters |
| IRB 303 / 304 | PNP – NO or NC selectable | 30 Meters |
| Power Supply | 230V AC |
| Display Size | 1/2 inch seven segment display |
| No. of digit | 4 |
| Input | Through sensor |
| sensor supply | 12V DC available from unit |
| Output | 1. Analog 0 – 5 or 0 – 10 VDC or 4 – 20mA 2. Digital TTL Retransmission output |
| Full Scale | User settable |
| Housing | ABS Plastic |
| Dimensions | 48 x 96 x 110mm |
| Cut out size | 92 x 46.5mm |
